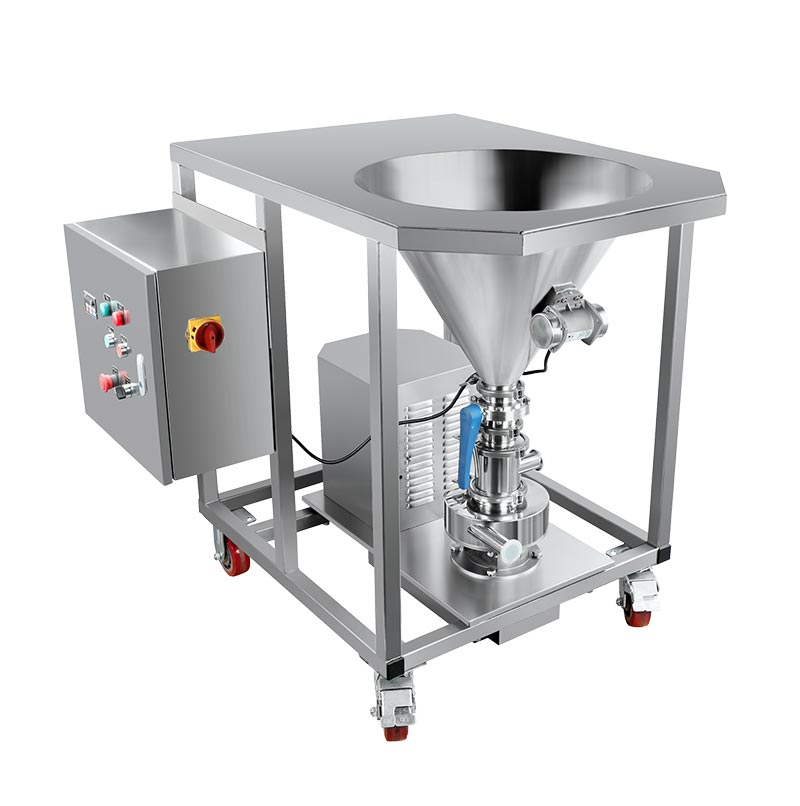

HHQ/HHZ Series Mixing Pump
Solution for emulsifying, mixing, adjustable, multi-tasking powder and liquid mixing. There are two series of mixing pumps: HHQ series is typically used for mixing, emulsification, homogenization and other functions of powder, solid, liquid and other materials and liquids. HHZ series is typically used for mixing, homogenizing, emulsification, refinement, dispersion, depolymerization and other functions of powder, solid, liquid and other materials with liquid.
Features
- Max capacity of powder: 9000kg/h
- Max capacity of thickeners: 3000kg/h (Depends on the viscosity and concentration of the material)
- Max temperature: 130℃
- Material: 304 /316L, 1.4301/1.4404, ASME BPE 316L, 1.4435 BN2 Fe≤0.5% Dual-phase steel 2205, Hastelloy alloy C276
- Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm
- Mechanical seal: Single mechanical seal and double mechanical seal
- Mechanical seal combination: See configuration table
- Inlet/Outlet Connection: Thread, Clamp, Flange, Aseptic flange
- Certification: 3-A-02-12(N.O.1579); MD/06/42-EC (N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004
- Very Simple And Clear Piping Layout
- Multiple tasks can be handled simultaneously.
- Ratio between liquid and powder is adjustable.
- The powder inlet is designed with a valve that controls the amount of powder inhaled. The valve can be manual and pneumatic.
- The liquid inlet is designed with a valve that controls the flow of liquid inhaled.
- The side of the hopper is designed with a vibrator to prevent the powder from accumulating and agglomerating.
- The hopper can be configured with tuning fork sensor. when work automatically, the sensor can prevent mixture ratio from inconsistent caused by low amounts of powder, and also can prevent the powder from overflowing.
Download
HHQ-HHZ-mixing-pump.pdf (10,81 Mbyte)
