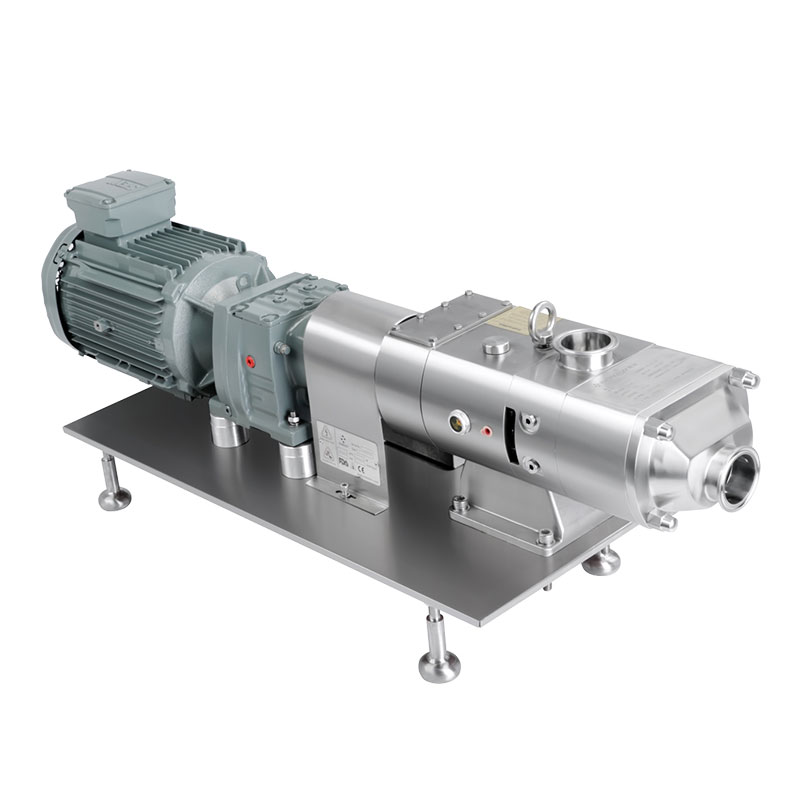

Hygienic double screw pump with motor and reducer
Twin-screw pump has strong self-priming ability, can transport solid particles, gas-liquid mixture, high viscosity, low viscosity and other materials. The pump not only can extract and convey materials, but also apply for CIP and SIP systems, can reduce pipeline, valve and CIP exclusive pumps, which improve efficiency and save cost. It has extra characteristics, that other volume pumps do not have, such as no pulse phenomenon, no particle damage, high pressure, wide speed range, large flow range and so on.
Hygienic Double screw pump with motor and reducer.Which is equipped with a motor and a reducer. By setting the ratio of the reducer, it can output the speed required by the user.
Features
- The screw and shaft are connected by spline, it’s simple and convenient for installation and disassembly.
- Rotate clockwise and counterclockwise without changing configuration.
- The pump can be used for various viscosities without changing configurations, etc.
- Pressure up to 300 psi (20.0 bar).
- Special screw lock nut designed to extend service life.
- There are no bearings and screws at the area contacting with medium.
- Large diameter 17-4PH shaft for higher strength and stiffness. helping to reduce vibration and extend seal life.
- High precision heavy duty needle roller bearings.
- Oil-lubricated bearings can be forward lubrication over the entire speed, temperature and pressure range.
Theory Of Operation
- With CIP extraction and delivery capacity; pump body and pump cover can discharge liquid completely.
- At the area contacting with medium, shaft and seal connect without screw.
- Single and Double mechanical seal options.
- All models have seal flush ports for optional double mechanical seal.
- Steam online available.
- All stainless steel design, including gearbox.
Download
screw-pump.pdf (12,24 Mbyte)
