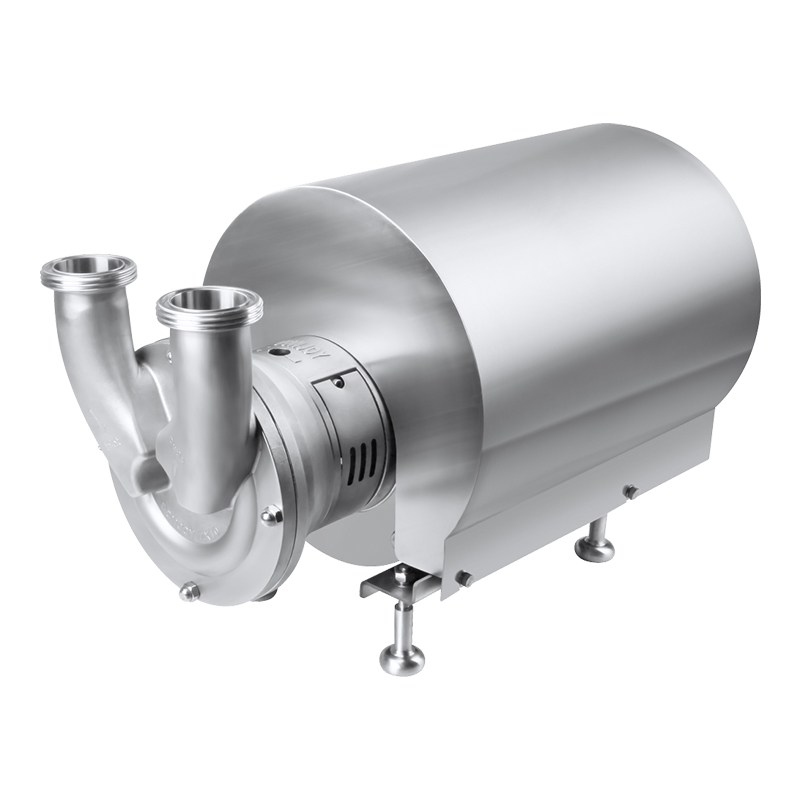

Sanitary CIP Self Priming Centrifugal Pump

Donjoy Technology is one of the most advanced manufacturers of sanitary self-priming pumps in China, with 30 years of design and manufacturing experience, and has the advantages of long service life, stable quality, and high sanitation level.

Donjoy Sanitary CIP Self Priming Centrifugal Pump have 3A, CE and ISO90001 certifications and meet food safety standards. Sanitary self-priming centrifugal pumps can be used to transport liquids and perform CIP and SIP cleaning of pipelines. One of its biggest advantages is its self-priming ability, which can reach a maximum of -0.8bar. This means that self-priming pumps can be used in negative pressure tanks and can be used to extract liquids.

Features

• Maximum flow: 40m³/h
• Maximum head: 42 M
• Maximum suction ability: 8 M
• Temperature: -20℃ to 130℃
• Power: 2.2-15KW
• Material: 304/316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5%
• Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm
• Machine seal: single machine seal, double machine seal
• Inlet/Outlet Connections: Thread, Clamp, Flange, Sterile Flange
• Certification: 3-A-02-10 (N.O.1579); MD/06/42-EC (N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004;

Theory Of Operation

The CIP Self Priming Centrifugal Pump uses the negative pressure generated by the rotation of the impeller to absorb liquid for transportation. The maximum flow rate can reach 35m³/h and the maximum head can reach 42M
